Flat Die Fuel Hay Rice Husk Chips Grass Biomass Pellet Machine High Quality

Ask Lasest Price
Brand Name :	HS
Model Number :
Certification :	ISO
Price :	$3,000.00 - $20,000.00/Sets
Payment Terms :
Supply Ability :	100 Set/Sets per Month wood sawdust pellet machine
Delivery Time :

Add to Cart

Product Details
Company Profile

Flat Die Fuel Hay Rice Husk Chips Grass Biomass Pellet Machine High Quality

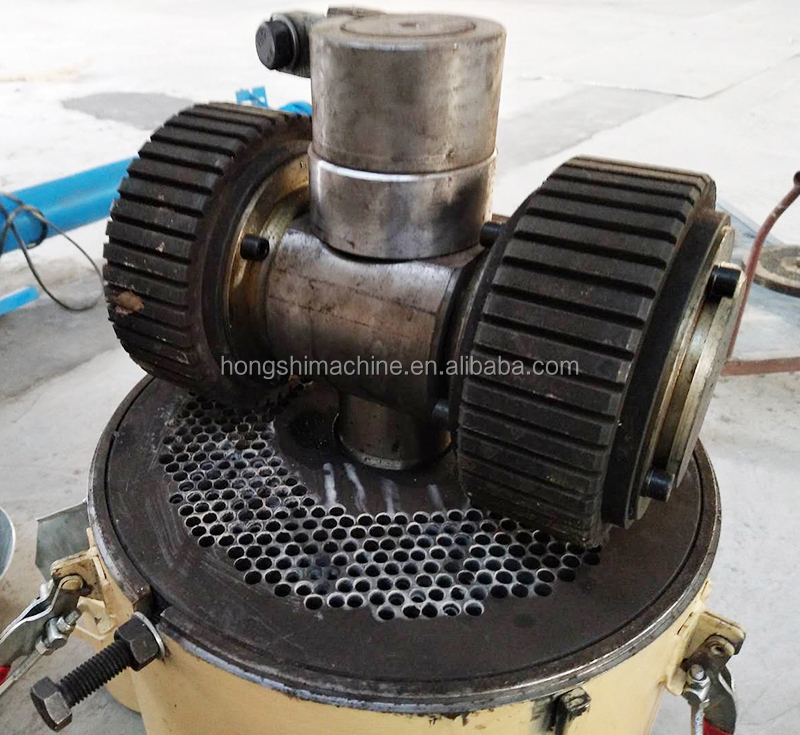

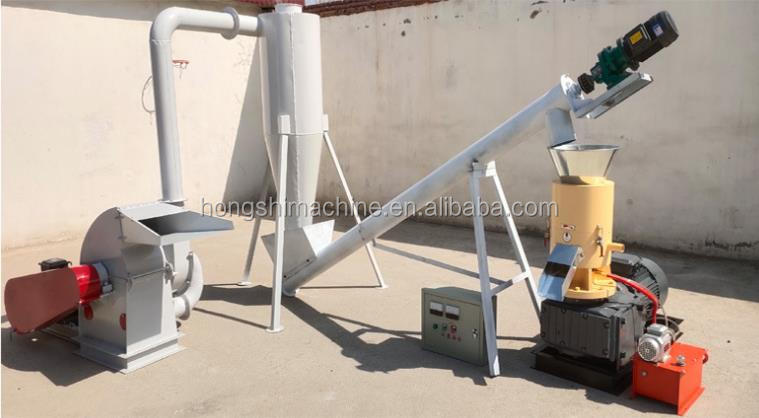

Wood sawdust pellet machine is made from solid waste such as corn cob, wheat straw, straw, peanut shell, corn cob, cotton rod, soybean rod, chaff, weed, branch, leaf, sawdust, bark, etc into pellets.The pellet is easy to storage and used for fuel.Wood sawdust pellet production line included wood crusher machine,conveyor machine,and sawdust dryer machine,etc. When working, powder material falls vertically on the surface of the mold from the feeder inlet of the pellet machine, and pass through the through hole of the mold under the rolling pressure of the pressing wheel.During process, the material is squeezed to form a continuously elongated cylindrical shape.This cylindrical pellet is continuously extended until it is cut by the cutter, then forming regular pellet.The pellets under the pellet machine mold are concentrated to the discharge port by the shifting teeth, and then fall automatically under the action of gravity, and the compression process of the pellets is completed.

Features

1. The machine is small in size, low in energy consumption and large in output, suitable for the production of household combustion pellets. 2. The machine shell is made of ductile cast iron, and the main shaft press roller shaft is modulated and processed by machining. It has high strength, good stability, and is not easy to deform. It improves accuracy and extends the life of the bearing. 3. The material of the sawdust pellet machine is compressed at one time without adding any additive. 4. Good stability, high output, low power consumption, simple operation and convenient movement. 5. The mold and pressure roller are made of high-quality alloy steel and advanced carburizing heat treatment process, which improves the service life. 6. 24-hour work and automatic lubrication.

Technical Paramenters

Model	Power	Capacity	Dimension(mm)	Weight
HSF-250	15kw	100-200kg/h	11204401060	400kg
HSF-300	22kw	200-300kg/h	12805601220	800kg
HSF-350	30kw	300-400kg/h	13005301220	900kg
HSF-400	37kw	400-600kg/h	13906501290	1000kg
HSF-450	45kw	600-800kg/h	16207001600	1500kg
HSF-550	55kw	700-1000kg/h	17007001600	1800kg

Detailed Images

Packing&Shipping

Company Introduction

Zhengzhou Hongshi Machinery Co.,Ltd is a leading manufacturer which is specialized in food processing machine,agricultural machine,recycle machine.We our company has many years of export experience.Our machine have been sold to Tajikistan,Kazakhstan, Malaysia, Nigeria, Nepal, Bangladesh, Sri Lanka, Indonesia, Bulgaria, New Zealand, Peru, South Africa,etc.Our factory welcome you to visit.

FAQ

1.How is the quality of your products? Our products are manufactured strictly according to national and international standard,and we take a test on each machine before delivered out.We will send our customers testing video and picture of our equipment after testing. 2.How about price? We are factory and be able to give you lower price than other trading company.If the products is really suitable and benefit you,the price is negotiable. 3.How about delivery? We usually deliver the goods out within 10 working days.We will provide the accurate delivery time according to different products. 4.Do you provide equipment operation training? Yes.We can send our technicians to working site for installation,adjustment and operation training. 5.Do you provide after-sale service? Yes.Quality guarantee term is for one year.We have a professional after-sale service team to solve problems promptly.If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.
