Chemical RD paraffin wax granulator machine resin granule making machine
Description of resin granule making machine
We have different model wax making machine with different capacity.The small size sales well.
1.Granule size can be choose between 4mm -12mm . Shapes can make hemisphercial, strip and flake
2.Equipment adopts frequency control, can choose a suitable speed according to the nature of the material
3.Product uniform particles, and beautiful, forming rate above 95%
4.Widely used van, melting point of material between 50 ℃ to 300 ℃, all can granulation forming, toxic materials can be closed.
Technical parameter of wax granulator making machine
Model | HS-40 | HS-60 | HS-120 | HS-150 |
Sizeofmould | 2.2mm | 2.2mm | 2.2mm | 2.2mm |
Sizeofproducts | 6-8mm | 6-8mm | 6-8mm | 6-8mm |
Product’sshape | hemispherical | hemispherical | hemispherical | hemispherical |
Capacity | 50-100kg/h | 100-300kg/h | 400-600kg/h | 800-1000kg/h |
Motor | 2.2kw+0.75kw | 3.7kw+0.75kw | 4kw+1.5kw | 5.5kw+2.2kw |
Waterpump | pressure:0.3mpa waterflow:10m3/h | pressure:0.3mpa waterflow:20m3/h | pressure:0.3mpa waterflow:20m3/h | pressure:0.3mpa waterflow:60m3/h |

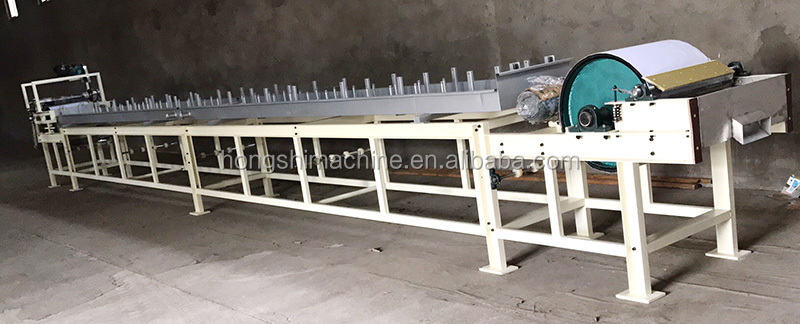

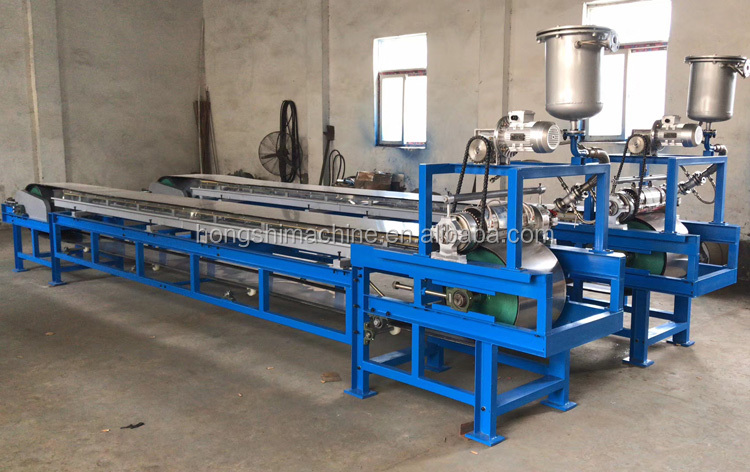

Pictures of wax granulation machine
Finished granules
|
|
