Automatic high speed nail making machine

Ask Lasest Price
Brand Name :	hongshi
Supply Ability :	100 Set/Sets per Month Machannical Quilting Machine For Sofa Mattresses Blankets
Price :	$2,762.00/Sets >=1 Sets

Add to Cart

Product Details
Company Profile

Automatic high speed nail making machine

Product Overview

z9-2c wire nail making machine

The working principle of nail making machine
Each small nail is made of the same diameter as the nail rod is a disc round wire through the nail-making machine straightening, stamping, wire feeding, clamping, shearing, stamping and other circular motion produced. Every step in this process is very important.

The stamping movement of nail making machine is driven by the rotating movement of the spindle (eccentric shaft) connecting rod and punching rod to form reciprocating movement, so as to implement the stamping movement. The clamping movement is made up of the pay shaft on both sides (also eccentric shaft) and the rotation of the CAM on the clamping rod repeated pressure, so that the clamping rod swings around, and the active nail mold is clamped and relaxed to complete a cycle of wire clamping movement. When the spindle rotates, it drives the small connecting rod on both sides to rotate so that the knife tire box on both sides reciprocates, and the cutter fixed in the knife tire box realizes shear motion. The wire of nail making can produce plastic deformation or separation by punching rod, clamping mould and cutting knife, so as to obtain the shape of nail cap, nail tip and nail size

FEATURES AT A GLANCE

Stamping process of nail quality stability, high production efficiency, and easy to operate, to achieve the automation of nail
machine, mechanization, greatly reduce the cost of nail production. Therefore, the precision and structure of the main shaft,
paying shaft, punching rod, die and tool directly affect the nail forming and precision.

Automatic high speed nail making machine

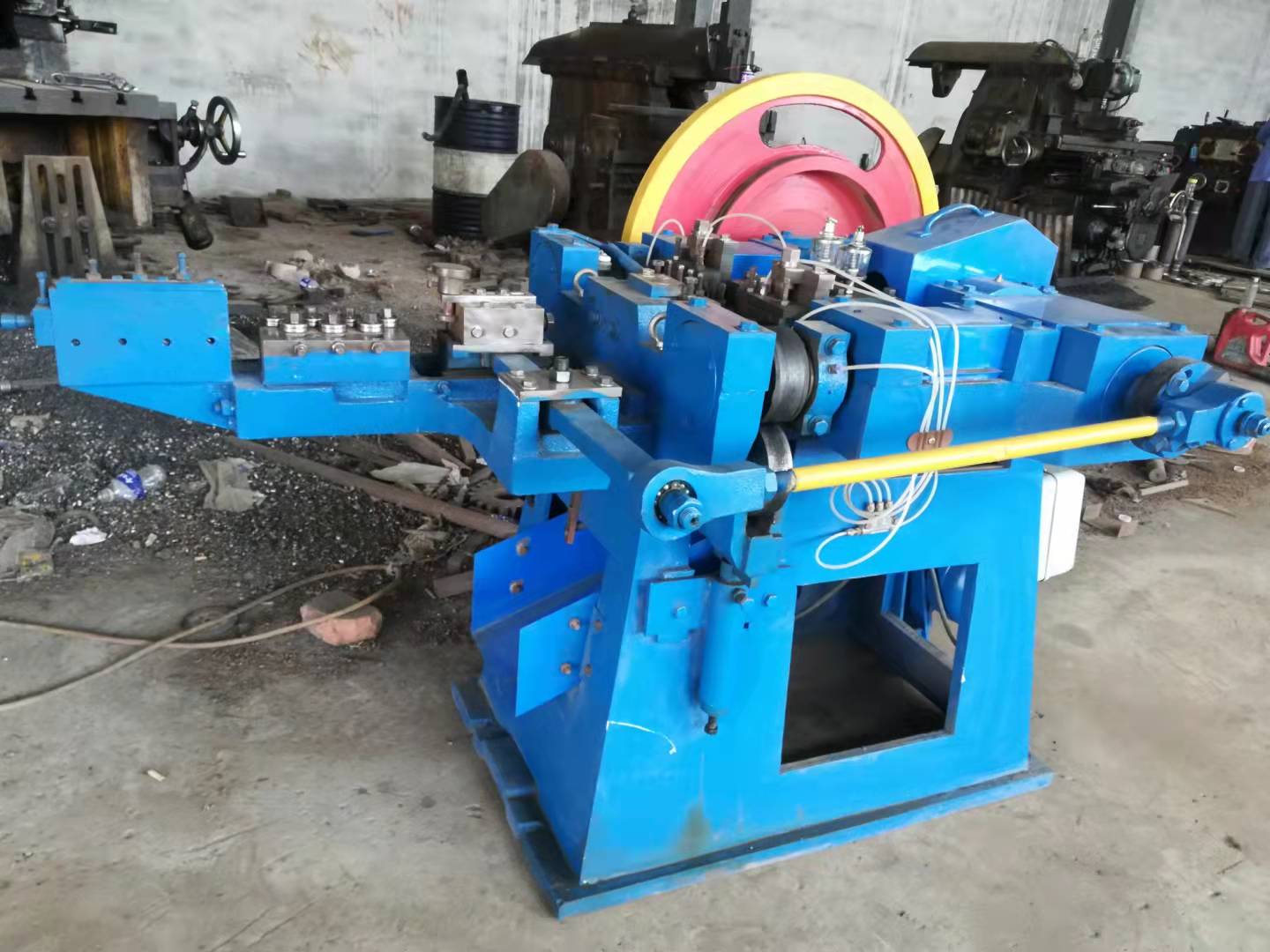

Right elevation

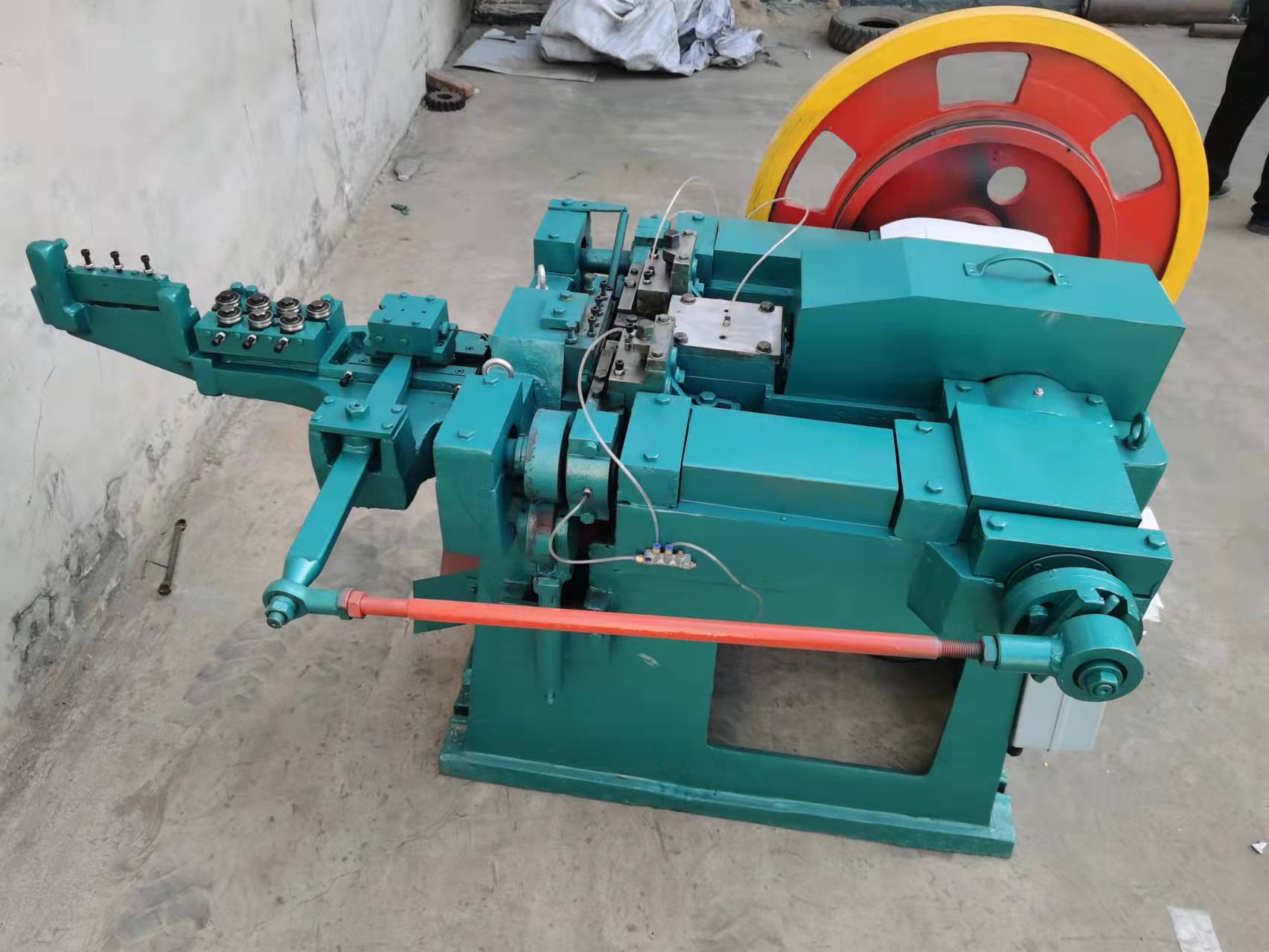

Left elevation

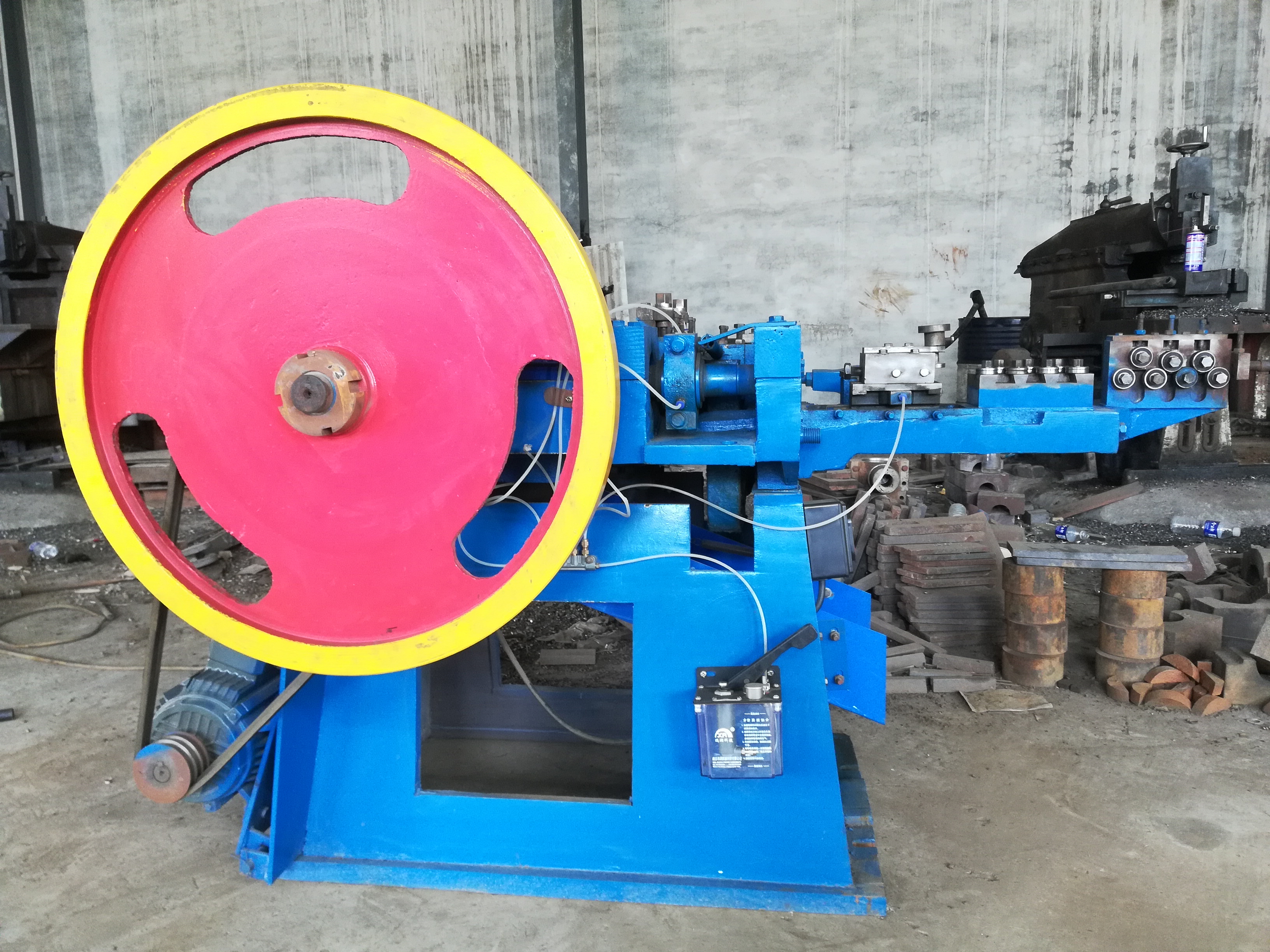

Front elevation

PRODUCT SPECIFICATIONS

No	制钉机型号	z9-1c	z9-2c	z9-3c	z9-4c	z9-5c
1	Nail-making range	9-25mm	16-50mm	25-70mm	40-110mm	60-150mm
2	Maximum diameter	1.6mm	2.5mm	3.5mm	5.0mm	5.5mm
3	Nning speed	500/min	320/min	280/min	200/min	200/min
4	Operating Machine Weight	400kg	800kg	1100kg	1900kg	2200kg
5	power of motor	1.5kw	2.2kw-4kw	3.0kw-4kw	4.0kw-4kw	5.5kw-4kw
6	outline dimension	1150840900mm	165011501100mm	190012001200mm	230013901345mm	240014001350mm
7
8

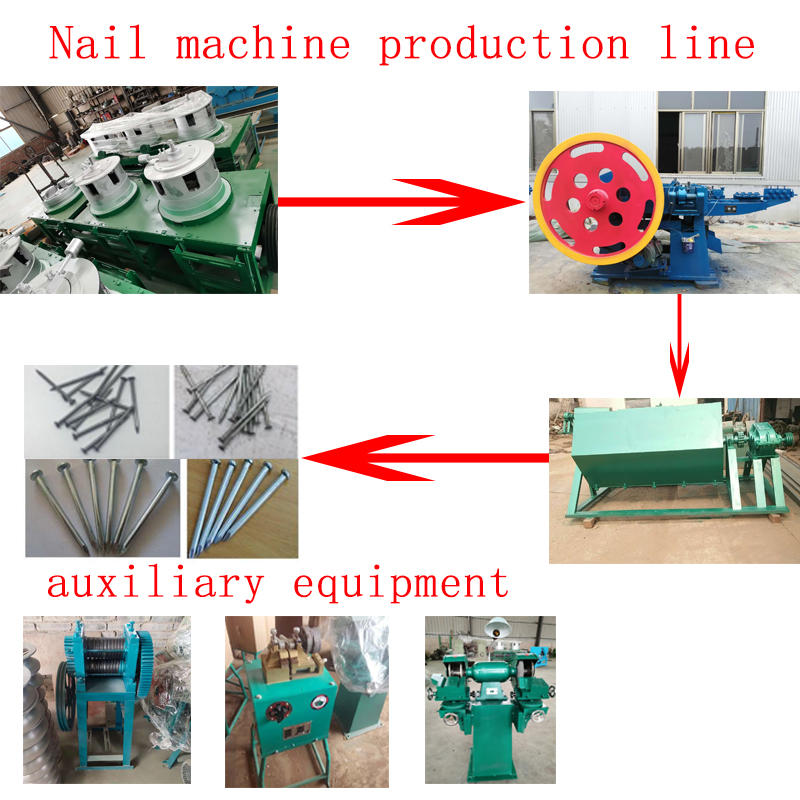

effect picture

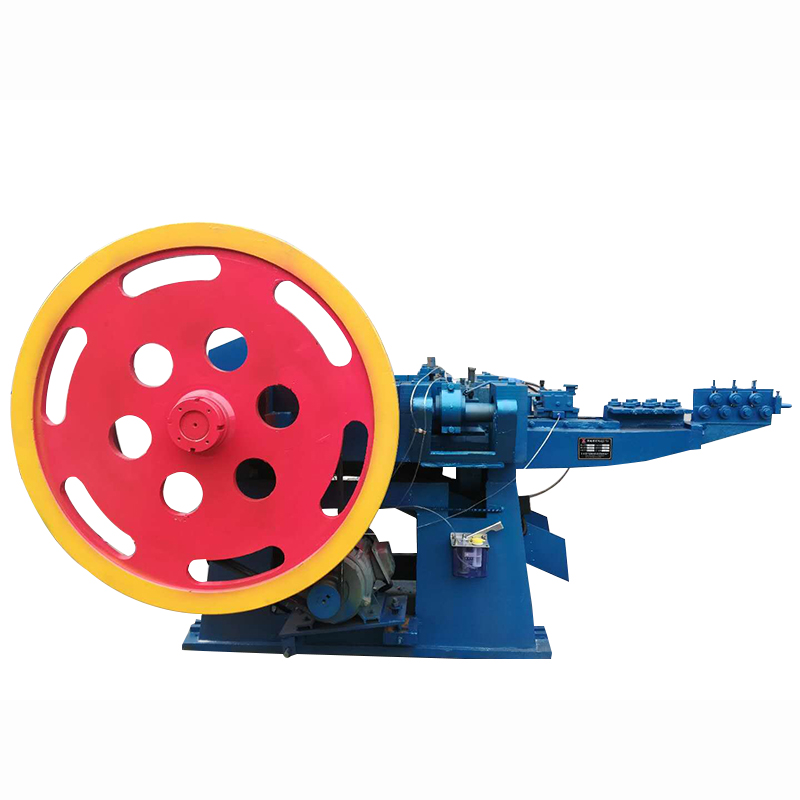

Product Picture Show

z9-1c picture

z9-2c picture

z9-3c picture

z9-4c picture

z9-5c picture

FAQ

1.who are we?

We are based in Henan, China, start from 2008,sell to Africa(40.00%),Mid East(25.00%),Eastern Europe(25.00%),Southeast
Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Agriculture Machinery,Food Machinery,Wood Processing Machinery,Briquette Press Machinery

4. why should you buy from us not from other suppliers?

null

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Russian
